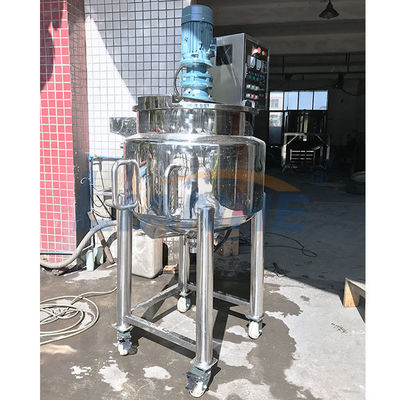

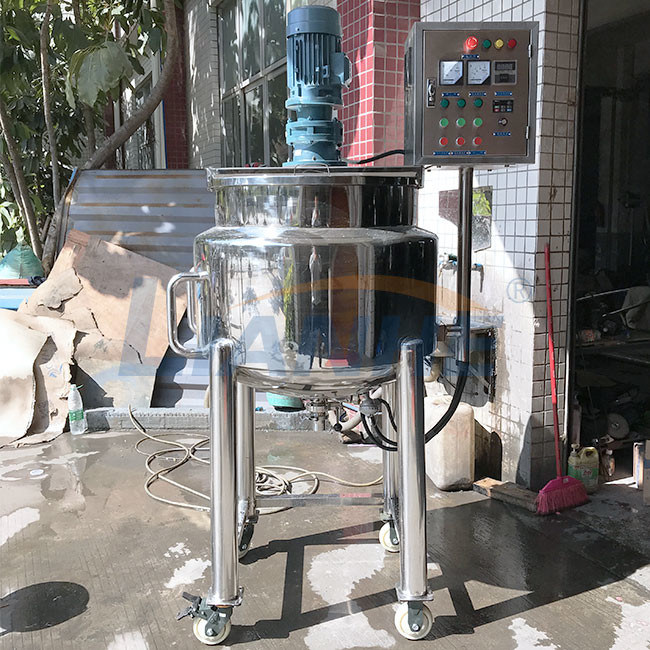

Movable Design Stainless Steel Mixing Tank 100L Shampoo Heating Mixer
Dettagli:
| Luogo di origine: | La Cina |
| Marca: | LIANHE |
| Certificazione: | CE, SGS, TUV |
| Numero di modello: | PMC-100 |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | 1 insieme |
|---|---|
| Prezzo: | Negotiable |
| Imballaggi particolari: | Imballaggio della cassa del compensato/film della bolla |
| Tempi di consegna: | 30 giorni lavorativi |
| Termini di pagamento: | T/T, D/A, L/C |
| Capacità di alimentazione: | 20 INSIEMI al mese |
|
Informazioni dettagliate |
|||
| Capacità disponibile: | 30L a 6000L | Struttura del carro armato: | 3 strati di acciaio, rivestimento 2 |
|---|---|---|---|
| Materiale: | SUS316L/SUS304/SUS304 | Metodo di riscaldamento: | Riscaldamento elettrico/riscaldamento di vapore |
| Raffreddamento: | Raffreddamento ad acqua | Metodo mescolantesi: | Un modo o miscelazione bidirezionale con la ruspa spianatrice del teflon |
| Velocità mescolantesi: | 0-65rpm | Velocità dell'omogeneizzatore: | 3000RPM |
Descrizione di prodotto
Movable Design Stainless Steel Mixing Tank 100L Shampoo Heating Mixer
Brief Introduction:
Movable Design Stainless Steel Mixing Tank 100L Shampoo Heating Mixer is made for mixing liquid products, such as chemical like liquid soap, shampoo, hand sanitizer, lotion, detergent, etc. And food products, sauce, mayonnaise, ketchup, juice, etc. And cosmetic products like lipstick, lip gloss, facial mask liquid, cream, etc.
The machine is made of SUS316L for material contact parts that meets GMP standard, it is very popular and productive for above industries.
The machine can be customized with different functions, such as stirring, homogenizing, heating & cooling, vacuum system, lifting system, etc. Usually we will customize the machine according to the products and capacity that clients want to make, to make sure the machine design can perfectly meet their requirements with reasonable and cost effective price.
Technical Parameter:
| Model | Capacity (L) | Agitator | Homiogenizer | Heating system | |||
| power (kw) | speed (rpm) | power (kw) | speed (rpm) | Electric heating (kw) | Steam heating (Mpa) | ||
| PMC-50 | 50 | 0.75 | 0-65 | 3 | 3000 | 6 | Steam heating energy conservation and environmental protection, selected according to need |
| PMC-100 | 100 | 1.5 | 0-65 | 4 | 3000 | 9 | |
| PMC-150 | 150 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-200 | 200 | 1.5 | 0-65 | 4 | 3000 | 12 | |
| PMC-300 | 300 | 1.5 | 0-65 | 5.5 | 3000 | 18 | |
| PMC-500 | 500 | 2.2 | 0-65 | 7.5 | 3000 | 27 | |
| PMC-1000 | 1000 | 4 | 0-65 | 11 | 3000 | 36 | |
| PMC-1500 | 1500 | 5.5 | 0-65 | 15 | 3000 | 45 | |
| PMC-2000 | 2000 | 7.5 | 0-65 | 15 | 3000 | recommend steam heating | |
| PMC-3000 | 3000 | 11 | 0-65 | 15 | 3000 | ||
| PMC-5000 | 5000 | 11 | 0-65 | 22 | 3000 | ||
| The parameters for reference only, all the machines can be customized accordingly. | |||||||
Application Product:
- Daily Chemical: Liquid soap, shampoo, hand sanitizer, liquid detergent, fabric softener, etc.
- Skin & Hair Care: Body lotion, facial cream, sunscree cream, serum, hair dye, hair conditioner, etc.
- Pharmaceutical: Ointment, erythromycin eye ointment, Compound Dexamethasone Acetate, etc.
- Food: Mayonnaise, ketchup, cheese, sauce, paste, coconut oil, juice, etc.
Features:
- The all-around wall Teflon scraping mixing adopts the frequency inverter for speed adjustment, so it can be adjusted to make different products with different manufacturing requirements.
- The diversified high-speed homogenizer can powerfully mix solid, oil and liquid raw materials and can rapidly dissolve many indissoluble materials such as AES, AESA, LSA,etc.
- The pot body is welded by SUS316 three-layer stainless steel plate.the tank body and the pipes adopt 5 times mirror polishing, which fully conforms to GMP standard requirements.
- The motor for homogenizer and mixing paddle, we only use Siemens or ABB, with higher quality, better stability and longer service life.
- All main parts of the machine are adopted with international brands, such as Delta, Schneider, Siemens, Omron, etc.
Service:
-
Warranty: One year since the date of installation. If there is any wearing parts be within the warranty and isn’t caused by un-proper operation, Lianhe will offer new parts for free.
-
Inspection: Buyer could visit our factory for site inspection, we could also send some machine testing videos to buyer if buyer couldn't come.
-
Machine Installation or Fixing: On site installation is available, Lianhe can send 1-2 technicians to buyer's factory for installation, testing and training. We can also provide online installation guidance instead, and provide you some 3D videos, instruction videos if buyer prefer installing by themselves.
-
Lifetime maintenance assistance and online video call service.
Customer's Reviews:
Exhibition & Project Cases:
